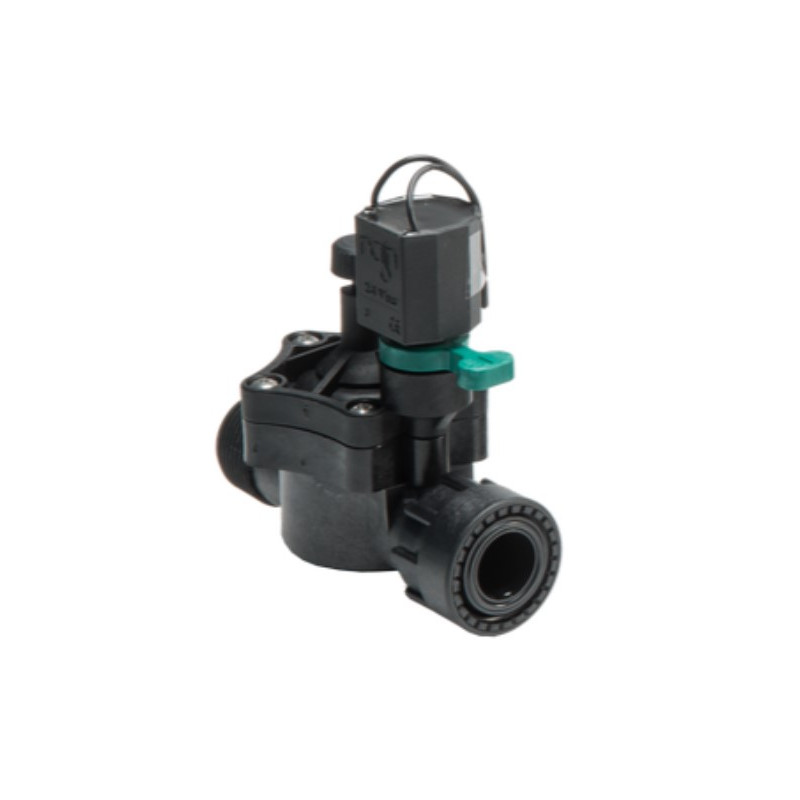

Electric valve RN 150 24 VAC 1" with presure regulator

·       Pressure: min 1.0 bar - max 12.0 bar

·       Temperature: +4° C - 70° CFlow rate: from 20 l/min to 50 l/min PA 6 30% fiberglass

·       Single-piece diaphragm for reliableleak-free valve closing

·       Self cleaning stainless-steel metering pin

·       Stainless-steel diaphragm differentialspring for smooth closing

·       PN12 tested piece by piece at 14 bar

·       Bleed handle for manual opening withinternal bleed.

UNION INLET. The manifold system allows the quick installation of the solenoid valves and a convenient maintenance allowing the removal of the solenoid valve from the starting manifold of the system.

SINGLE – PIECE DIAPHRAGM. The special contemporary extrusion of polypropylene and TPE gives the diaphragm greater resistance to the elastic stress of opening and closing solenoid valve.

MANUAL OPENING. The green ON/OFF lever located under the solenoid allows easy manual opening of the solenoid valve.

PRESSURE REGULATOR. All our solenoid valves are compatible with Rain pressure regulator. The Rain pressure regulator allows you to manage the solenoid valve outlet pressure from a minimum of 1.0 bar to a maximum of 7 bar.
